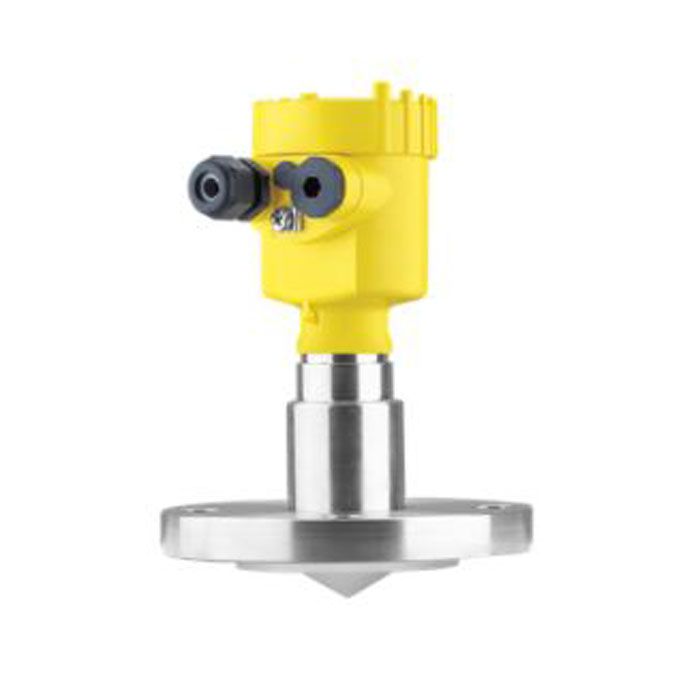

Flange 4" 150lb RF, ASME B16.5 / 316/316L

Radar sensor for continuous level measurement of liquids. For aggressive liquids or under hygienic requirements.

• 26 GHz High-Frequency K-Band
• FM CL I DIV2 ABCD, CL II,III DIV1 EFG
• PTFE HygEncaps Horn Ant/-40...200°C
• 4" 150# RF Flange ANSI 316L
• 2wr 4-20mA HART
• Aluminum Housing IP66/IP68 (0.2bar)
• 1/2" NPT Cable Entry w/out Gland & Plug
• Top Mount Indication/Adjustment Module
• W/out Additional Equipment

Same Day Shipping
Final Sale – No Returns – No Refunds
