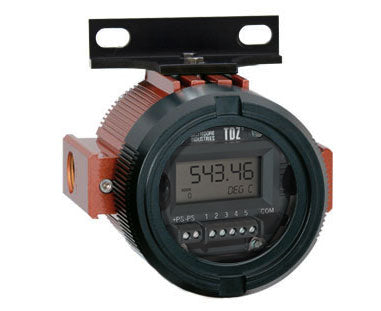

HART Temperature Transmitter

HART Temperature Transmitter

Stock Available 9 in stock
Regular price $1,417.00 USD
$1,417.00 USD Regular price Sale price
Sale Sold out
  • Details
  • Overview
  • Input PRG
    Output 4-20mA
    Power 12-42DC
    Input Description Dual Input Programmable for RTD, T/C, Ohms, mV or Potentiometer
    Output Description 4-20mA
    Power Description 2-Wire, Output Loop Powered
    Housing Description Aluminum Explosion-proof/Flameproof connection head with two entry ports
    Output/Digital Communications 4-20mA with HART
    For use in Safety Instrumented Systems (SIS) No
    Device Power 2-Wire, Loop Powered
    Input Configurable: Dual Sensor RTD, T/C, mV, Ohms, Potentiometer
    Integral Display Yes
    Alarm/Relay Output No
    Intrinsically-Safe Input Connections No
    Configuration/Setup PC Configurable, USB Cable, HART Configurable
    Enhanced RFI/EMI Immunity No
    Isolation Fully Isolated
    Housing/Enclosure Explosion Proof/Flameproof IP66 Field Mount Enclosure
    2" Pipe Mount Bracket No
    Field Enclosure Conduit Connection Standard (NPT)
    Hazardous Area Certifications Non-Incendive/Div. 2, Zone 2, Explosion Proof, Flameproof
    RoHS Compliant Yes

    test22
  • Documents
  • More Information

Input PRG
Output 4-20mA
Power 12-42DC
Input Description Dual Input Programmable for RTD, T/C, Ohms, mV or Potentiometer
Output Description 4-20mA
Power Description 2-Wire, Output Loop Powered
Housing Description Aluminum Explosion-proof/Flameproof connection head with two entry ports
Output/Digital Communications 4-20mA with HART
For use in Safety Instrumented Systems (SIS) No
Device Power 2-Wire, Loop Powered
Input Configurable: Dual Sensor RTD, T/C, mV, Ohms, Potentiometer
Integral Display Yes
Alarm/Relay Output No
Intrinsically-Safe Input Connections No
Configuration/Setup PC Configurable, USB Cable, HART Configurable
Enhanced RFI/EMI Immunity No
Isolation Fully Isolated
Housing/Enclosure Explosion Proof/Flameproof IP66 Field Mount Enclosure
2" Pipe Mount Bracket No
Field Enclosure Conduit Connection Standard (NPT)
Hazardous Area Certifications Non-Incendive/Div. 2, Zone 2, Explosion Proof, Flameproof
RoHS Compliant Yes
